| Model |
NVR301-08LB |
|
| Video/Audio Input |
| IP Video Input |
8 Kanal |
|
| Network |
| Incoming Bandwidth |
40Mbps |
| Outgoing Bandwidth |
40Mbps |
| Remote Users |
128 |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output |
| HDMI/VGA Output |
HDMI:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz |
| Recording Resolution |
1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback |
8 Kanal |
|
| Corridor Mode Screen |
3/4/5/7/9 |
|
| Decoding |
| Decoding format |
Ultra 265/H.265/H.264 |
Liveview/
Playback |
1080p/960p/720p/D1/2CIF/CIF |
| Capability |
2 x 1080p@30, 4 x 720p@30 |
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
up to 8TB for each disk |
| External Interface |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panel：2 x USB2.0 |
| General |
| Power Supply |
12V DC
Power Consumption: ≤3.2 W( without HDD ) |
| Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions(W×D×H) |
205mm × 205mm × 42mm(8.1" × 8.1" × 1.7") |
| Weight ( without HDD ) |
0.51kg ( 1.12lb ) |

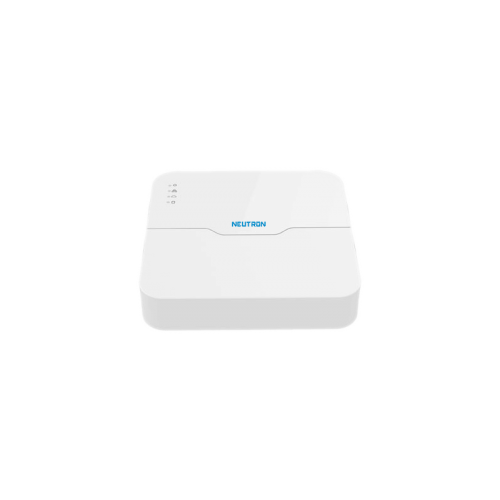

/nvr13-500x500.png "NVR301-08LB")
